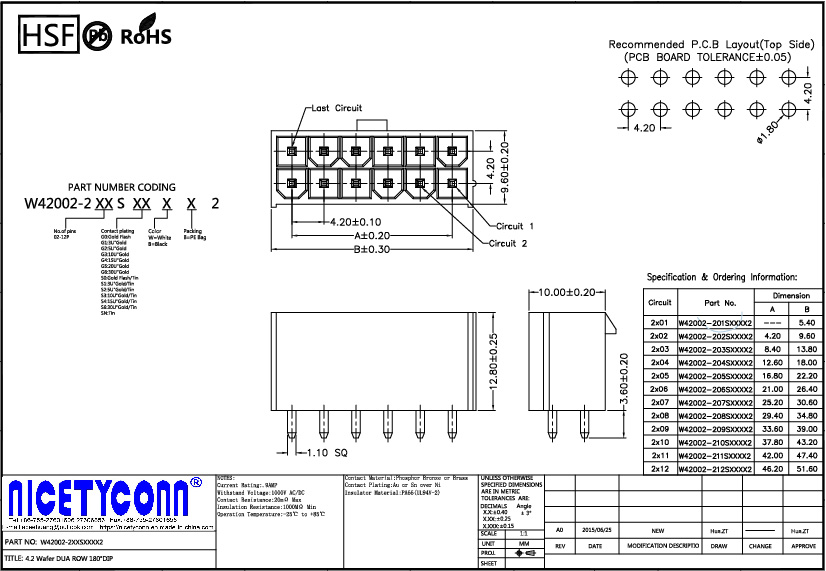

4.2mm Pitch Dual Rows 180 Degree DIP Wafer Connector |
|
Specification: |
|
Current Rating: 9.0AMP |
|
Withstand Voltage: 1000V AC/DC |
|
Contact Resistance: 20MΩ Max |
|
Insulation Resistance: 1000MΩ Min |
|
Operation Temperature: -25ºC to +85ºC |
|
Insulation Material: PA66(UL94V-2) |
|
Contact Material: phosphor bronze or brass |
|
Contact Plating: Au or Sn over Ni |
