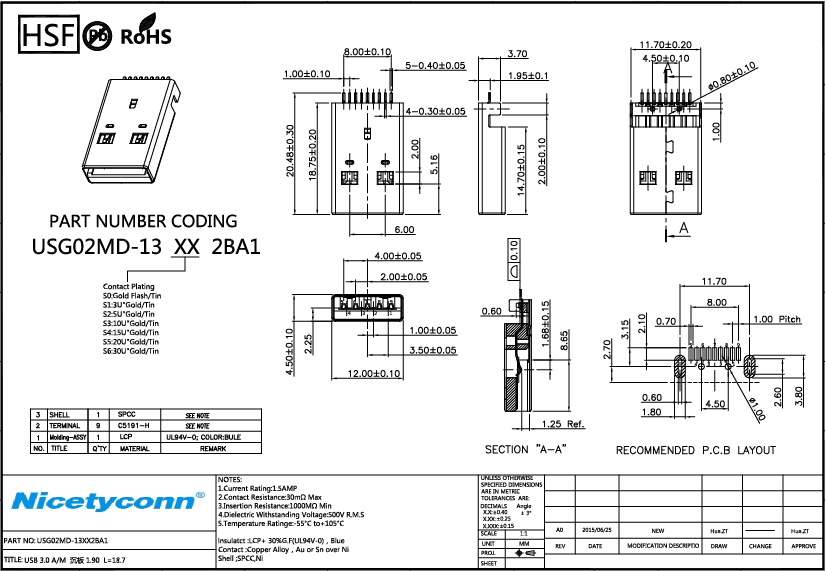

3.0 A/M Solder Type 1.90 L=17.6 USB Plug |
|
Specification: |
|
Current Rating: 1.5AMP |
|
Contact Resistance: 30mΩ Max |
|
Insertion Resistance: 1000MΩ Min |
|
Dielectric withstanding voltage: 500V R.M.S |
|
Temperature Range: -55ºC to +105ºC |
|
Insulator: LCP+30%GF(UL94V-0)，Blue |
|
Contact: Copper Alloy, Au or Sn over Ni |
|
Shell; SPCC. Ni |
